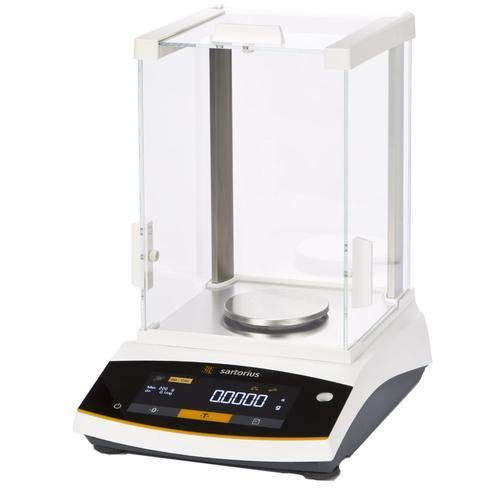

Sartorius BCE224-1S Entris II Analytical Balance, 220 g × 0.0001 g
The Sartorius BCE224-1S is an Entris II Essential Line analytical balance for small-sample laboratory weighing. It provides 220 g capacity and 0.0001 g (0.1 mg) readability. An enclosed draft shield protects the weighing area during measurement.
- Simple operation: LED touch controls for everyday weighing.
- External adjustment: Uses a separate external calibration/test weight, available as an optional accessory.
- Data connections: USB-C and 9-pin RS232 for compatible computers, printers or a remote display.
- Enclosed weighing area: manual draft shield with a 240 mm-high weighing chamber.
Match the complete BCE224-1S model number when selecting a replacement or accessories. Compare Sartorius balances or call (832) 766-5410 for help choosing a setup.
Warranty: 2-year
Specifications
Brand Sartorius Model BCE224-1S Product line Entris II Essential Line Product type Analytical Balance Maximum capacity 220 g Readability 0.0001 g (0.1 mg) Repeatability, typical near maximum load 0.1 mg Linearity limit ±0.2 mg Linearity, typical ±0.06 mg Typical stabilization time ≤1.5 s Calibration / adjustment External, using a separate calibration/test weight Weighing pan 90 mm diameter Draft shield Manual analytical draft shield Weighing chamber height 240 mm Display LED touch display Data interfaces USB-C; RS232, 9-pin D-sub Power adapter input 100–240 VAC ±10%, 50–60 Hz, 0.2 A Nominal dimensions (W × D × H) 219 × 317 × 345 mm Legal verification Non-verified standard model Warranty: 2-year Readability is the smallest displayed increment. Repeatability and linearity describe different aspects of performance; compare them with your method requirements.
Dimensions are manufacturer nominal product dimensions. Check the manual drawing and required operating clearance when planning installation.
Applications & Industries
Consider this model for small laboratory samples, sample preparation and quality-control checks when your method requires analytical readability. Include the container when checking the maximum load, and confirm that its footprint and height suit the pan and draft shield.
Built-in programs include counting, percentage weighing, net-total formulation, totalizing, animal weighing/averaging, density determination, statistics and checkweighing. Some methods require additional accessories. Use the balance indoors on a stable, level surface away from drafts and vibration.
Manuals & Accessories
Manufacturer standard package: balance, weighing pan, pan support, power supply with country-specific adapters, draft shield, operating instructions and dust cover. This describes the package listed in the Sartorius manual; confirm the contents of the specific offer when ordering.
External adjustment weight: Sartorius specifies 200 g, OIML E2 for this model. This weight is optional and is not part of the manufacturer standard package.
Other optional accessories: printer, data cable, remote display, display protection film, Kensington security lock, foot switch, density determination set YDK03 and below-balance hook M5 69EA0039. These are separate accessories. Confirm device, cable and software compatibility before ordering.
Contact Us
Need help with capacity, calibration weights, connections or delivery timing? Contact All Scales USA with the model number and your application.
Call (832) 766-5410 or email pete@allscales.com. Also: (281) 656-2666 · (832) 290-3120.
All Scales USA, 21249 FM 529 Rd, Cypress, TX 77433.
Explore Sartorius balances or compare precision and toploading balances.
Model
BCE224-1SProduct Type
Analytical Balance
