A&D HT-500 Compact Scale, 510 g × 0.1 g
The A&D HT-500 compact scale gives you 510 g capacity with 0.1 g readability for classroom experiments, sample preparation and everyday weighing. A large LCD, simple tare control and stackable carrying case make it easy to use and store.
- 132 × 130 mm weighing pan
- Four AA batteries included
- External calibration; calibration weight sold separately
- Optional AC adapter and HT-10 stainless-steel pan
Specifications
Brand A&D Weighing Model HT-500 Offer quantity 1 scale Capacity × readability 510 g × 0.1 g Calibration External; specified mass 500 g ±0.01 g (sold separately) Weighing pan 132 × 130 mm; HT-10 stainless-steel pan optional Display 13.5 mm LCD; no backlight Weighing units g, oz, lb-oz and N; additional regional units depend on configuration. Maximum tare 510 g Power Four AA batteries included; compatible AC adapter optional Alkaline battery life Approximately 450 hours at 20°C, per operating instructions; depends on use Dimensions 195 × 136 × 44 mm, per international operating instructions Auto power off Approximately 5 minutes while the reading remains stable; can be disabled Operating environment −10°C to 40°C; below 85% relative humidity Data connections No computer/printer data interface specified for this model Trade use General-purpose weighing; not offered here as NTEP legal-for-trade equipment Warranty 2-year limited What's Included
- HT-500 scale
- Stackable carrying case
- Four AA batteries
- Instruction manual
The AC adapter, HT-10 stainless-steel pan and calibration weight are sold separately. Supplied batteries are for initial use and may have limited life.
Applications & Industries
- Classroom and science demonstrations
- General sample weighing
- Portable bench weighing
Calibration & Connections
External calibration uses a 500 g ±0.01 g weight, sold separately. Calibrate after relocation when needed and follow the linked procedure. Use only the specified A&D adapter for the destination voltage; the current US page lists TB:662 for 120 V, while older literature lists FV-05C. Confirm the current replacement before ordering.
No USB, RS-232C or printer connection is specified. The HT-10 pan is a compatible optional accessory.
Contact Us
Need help choosing accessories or a calibration weight? Contact All Scales USA, 21249 FM 529 Rd, Cypress, TX 77433.
Call (832) 766-5410 or email pete@allscales.com. Additional numbers: (281) 656-2666 and (832) 290-3120.
Product Photos

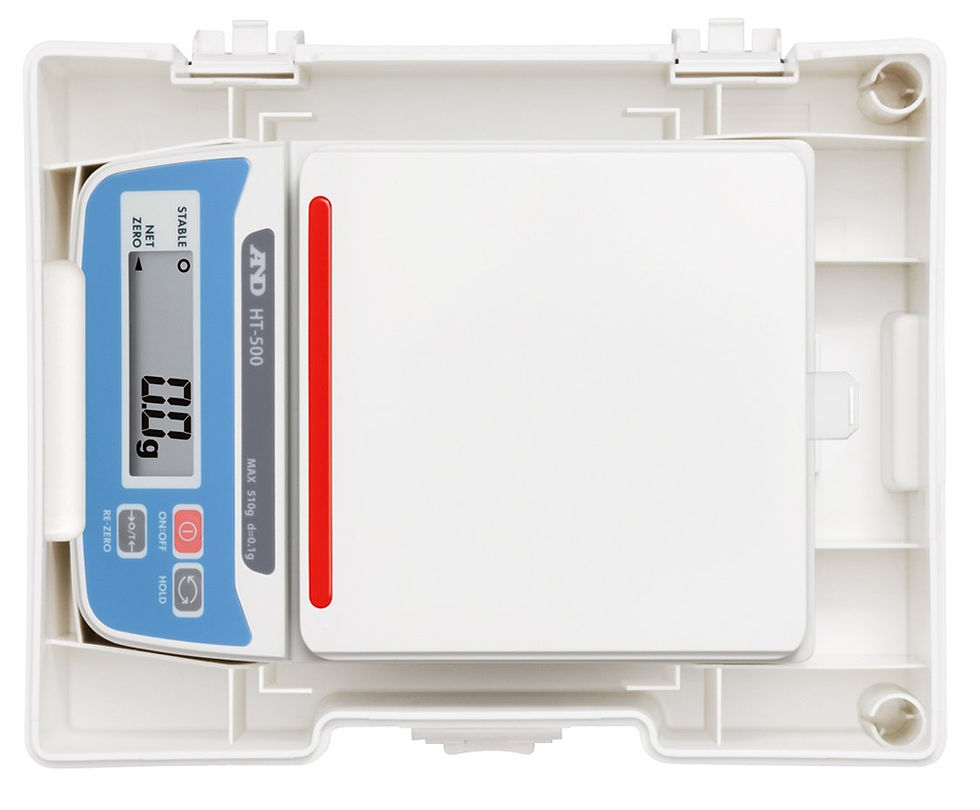

Photos show a Japanese-market HT-500 with a HOLD-key panel. The supplied regional configuration may have different controls and selectable units; confirm the configuration when ordering.
Model
HT-500Product Type
Digital Scales
