A&D SC-150KAM Washdown, 330 lb × 0.05 lb, IP68 NTEP

• Capacity × readability: 330 lb × 0.05 lb / 150 kg × 0.02 kg / 5,200 oz × 1 oz.
• Pan: 300 × 380 mm / 11.8 × 15.0 in.
• Construction: SUS304 stainless pan, frame and column; sealed ABS indicator.
• Protection: IP68 standard enclosure.
• Display: 39 mm LCD; 10 updates per second.
• Repeatability: 0.02 kg standard deviation; linearity: ±0.05 kg.
• Counting: minimum unit weight 2 g; up to 75,000 pieces.
• Power: six D alkaline cells; up to approximately 4,500 hours under the U.S. brochure conditions.
• Overall dimensions: 300 × 543 × 717 mm; approximately 12 kg.

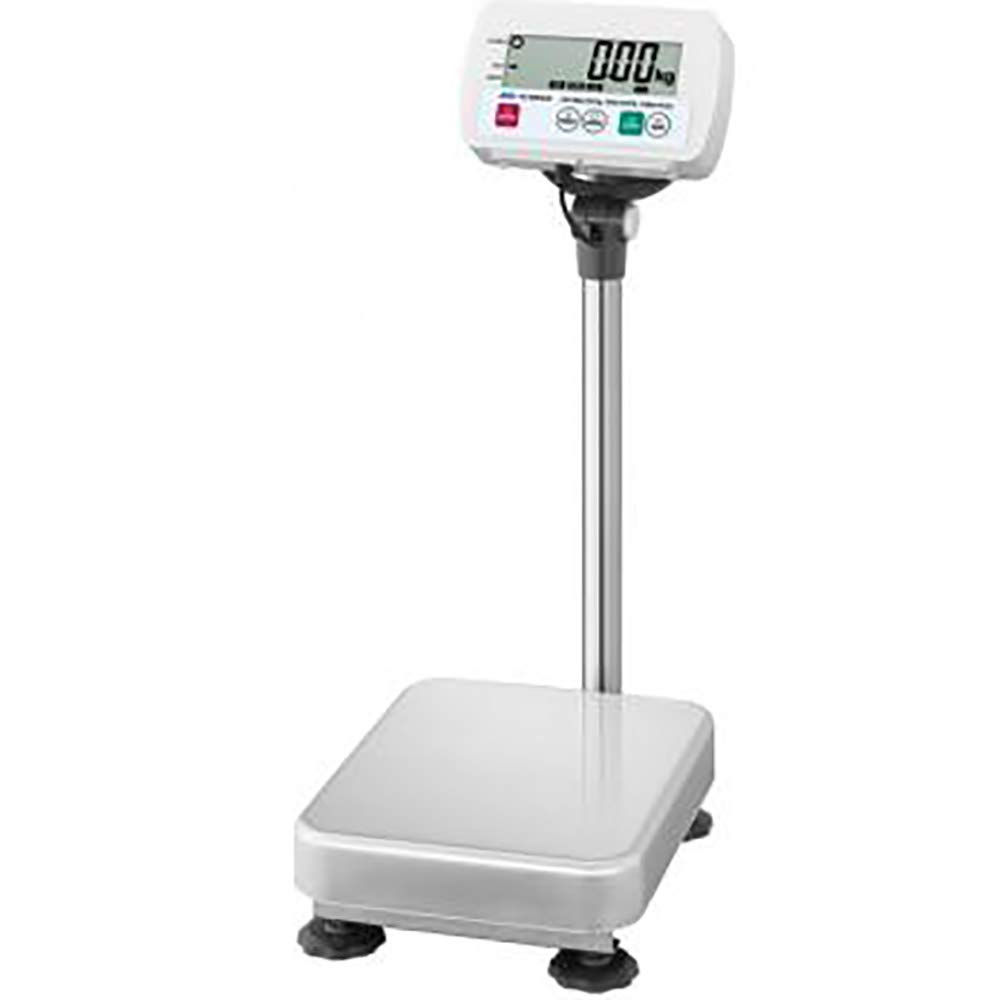

SC-150KAM scale assembly with column, stainless pan and instruction manual. Batteries are not included; this model does not use an AC adapter.

SCE-02 USB or SCE-03 RS-232C/comparator relay are optional and cannot be fitted together. Installing either option removes IP68 compliance.

2-year warranty.

NTEP CC 11-048A1 lists SC-150KAM in Class III at the divisions shown above for general-purpose, non-computing weighing. Commercial use requires an eligible marked unit, correct configuration, intact seal and local placing-in-service approval. The identification badge is on the indicator top or face; a wire seal protects the bottom calibration switch. Use the counting mode for process control.

• A&D SC/SE instruction manual (PDF)
• A&D SC/SE brochure (PDF)
• NTEP certificate 11-048A1 (PDF)

Manufacturer family photos show the medium-platform SC configuration and stainless-frame details. The supplied capacity is SC-150KAM; close-up model markings can differ between family images.
