A&D HW-60KWP whole stainless washdown bench scale

A&D HW-60KWP Washdown Bench Scale, 150 lb × 0.01 lb

SKU: A5-4FLN-M4UH

The A&D HW-60KWP is a legacy stainless-steel washdown bench scale for wet-area weighing and checkweighing. Its bright vacuum-fluorescent display and standard RS-232C connection support everyday production work.

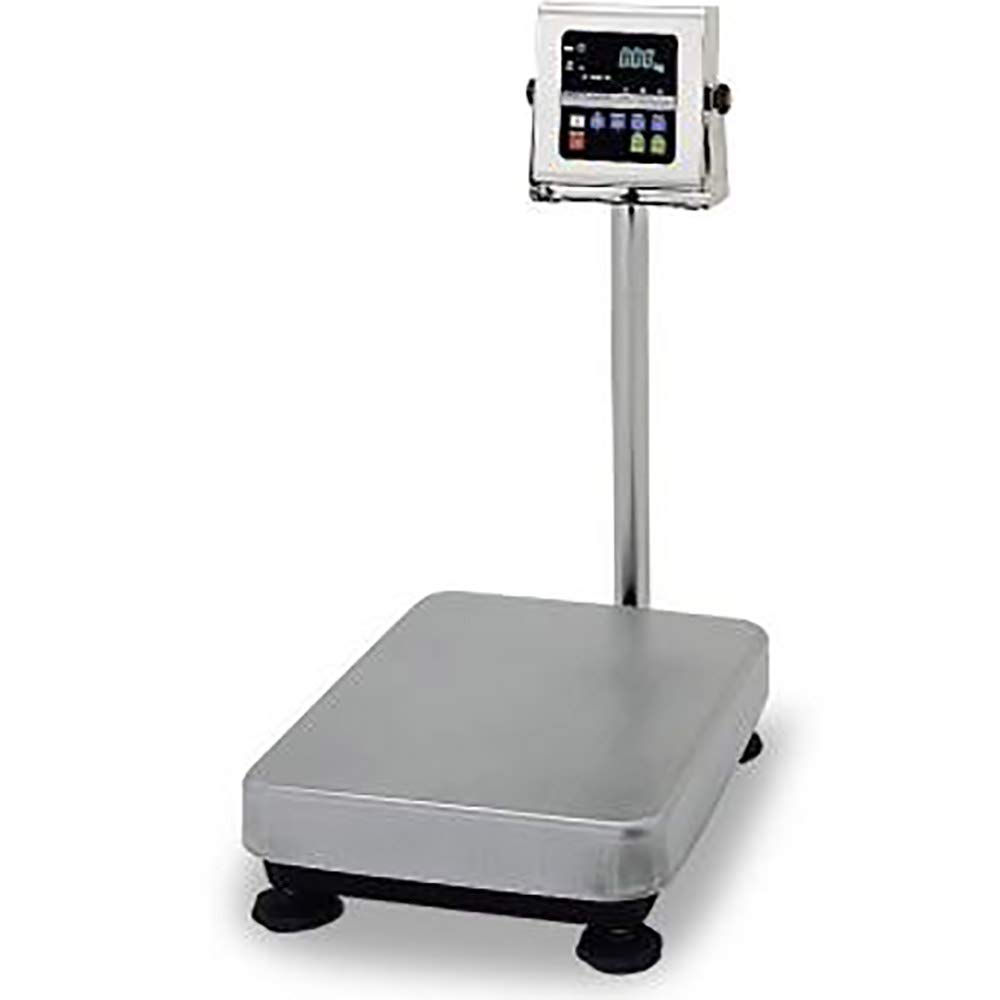

Photos: The main image shows the HW-60KWP configuration. The indicator close-up and multi-scale lineup are representative legacy WP-family views. This offer is for one scale.

  • Specifications

    Capacity × readability 150 lb × 0.01 lb; 60 kg × 0.005 kg
    Weighing range Single range
    Weighing units kg, lb, oz
    Weighing platform 330 × 424 mm / 13 × 16.7 in; stainless steel
    Linearity ±10 g
    Repeatability 10 g (manual notation: ±)
    Calibration External, using a suitable calibration weight
    Display 7-segment VFD, 20 mm character height
    Protection IP65 water/dust-resistant stainless-steel washdown design
    Power AC 110–120 V, 60 Hz mains; no battery operation
    Interfaces RS-232C bidirectional
    Functions Parts counting, Percent weighing, Comparator/checkweighing, Accumulation, Preset tare, Hold, Simple/full-dribble batching
    Operating conditions −10 to +40°C; 85% RH or less, non-condensing
    Overall dimensions (W × D × H) 330 × 615 × 786 mm
    Net weight (approx.) 13 kg
  • Included, Options & Warranty

    Included: HW-60KWP scale with stainless-steel platform and column indicator; Instruction manual.

    Optional, sold separately:

    • HVWP-02: 17 ft / 5 m display extension cable
    • HVWP-03: RS-232C plus comparator relay outputs and buzzer; replaces standard RS-232C board
    • HVWP-04: RS-422/485 plus comparator relay outputs; replaces standard RS-232C board

    Seller-listed warranty: 2-year.

  • Use & Compatibility

    High-resolution process weighing model. No NTEP legal-for-trade approval is claimed for this HW configuration.

    A&D identifies this WP series as discontinued. Check legacy-option availability and the instrument’s voltage/nameplate before ordering. Keep the AC plug dry; do not immerse the scale or use powerful water jets. WP and the newer CWP series use different indicators and options.

  • Contact Us

    Questions on compatibility, calibration, or what is in the box? All Scales USA, 21249 FM 529 Rd, Cypress, TX 77433. Call (832) 766-5410 or email pete@allscales.com. Also: (281) 656-2666 · (832) 290-3120.
