Brecknell C3236 Washdown Checkweigher, 6 / 15 / 30 lb

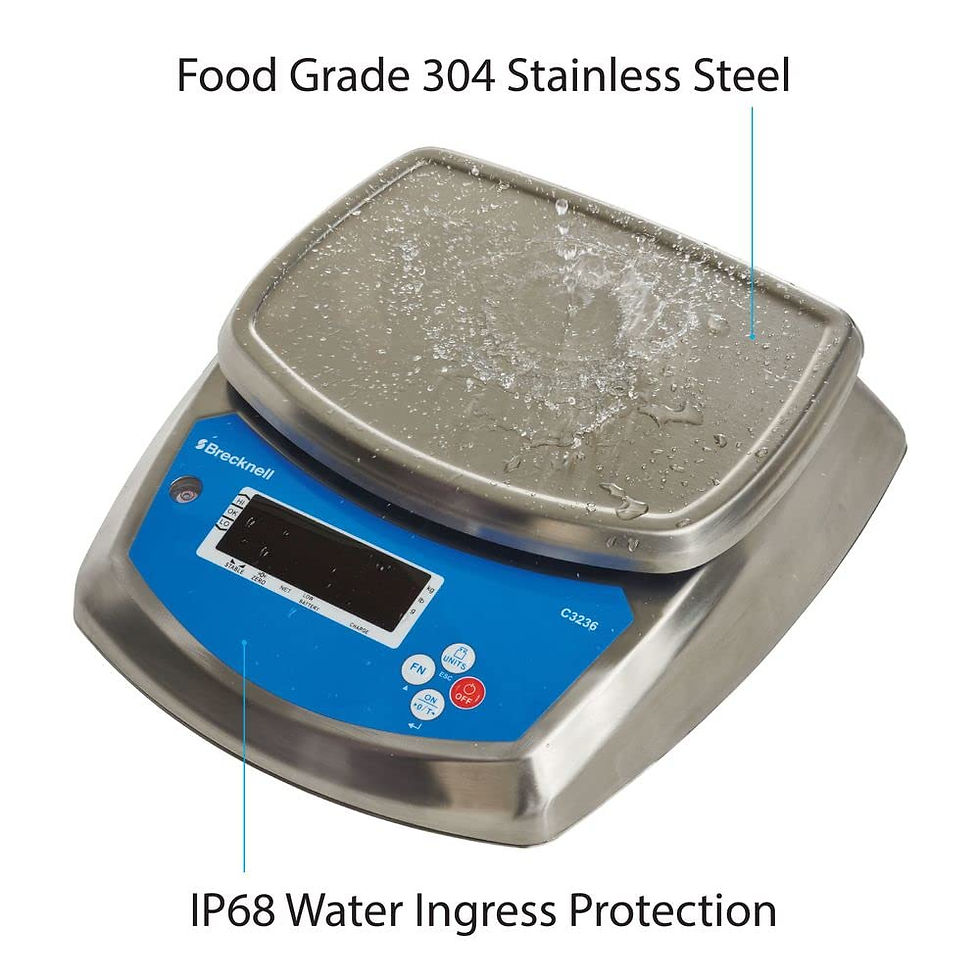

The Brecknell C3236 is a stainless steel bench scale for portion control and repetitive checkweighing. Choose the required capacity using the Size selector; the specifications below identify each available version.
Photos show the C3236 family; the rear-label photo shows the 6 lb version. Capacity depends on the selected option.
Free shipping within the contiguous U.S.
Specifications
6 lb capacity option 6 lb × 0.0005 lb / 3 kg × 0.2 g; lb-oz mode: 0.01 oz increments; manufacturer code 816965007165 15 lb capacity option 15 lb × 0.001 lb / 7 kg × 0.5 g; lb-oz mode: 0.02 oz increments; manufacturer code 816965007172 30 lb capacity option 30 lb × 0.002 lb / 15 kg × 1 g; lb-oz mode: 0.05 oz increments; manufacturer code 816965007189 Accuracy 0.04% at full load Platform 190 × 255 mm / 7.5 × 10 in Construction Food-grade 304 stainless steel housing and top pan; IP68 / NEMA 4X Display Five-digit red LED with 15 mm / 0.6 in digits Controls On/Zero/Tare, Function, Units and Off Units lb, kg, g and lb-oz Functions General weighing and adjustable checkweigh limits with low, acceptable and high indications and selectable audio Tare range 100% of capacity Power AC adapter or built-in 6 V, 4 Ah rechargeable lead-acid battery Battery operation Up to 62 hours; charge for at least 6 hours Power saving Adjustable automatic shutoff and display standby Calibration External zero/span via the calibration menu Operating temperature −10 to 40°C / 14 to 104°F Overall dimensions 330 × 290 × 110 mm / 13 × 11.4 × 4.3 in Use Process weighing; lb-oz mode is not legal for trade Included equipment Complete scale with stainless platter; AC adapter with plug adapters; Instruction manual Applications & Industries
- Restaurants, commercial kitchens and catering
- Food preparation and processing
- Portion-control and checkweighing tasks
- Bakeries and pizza shops
- Meat, seafood and produce
- Food-cost management and quality control
Care & Water Protection
Fully disconnect the power adapter before cleaning or washdown. Wipe with a damp cloth and mild detergent; avoid abrasive cleaners, solvents and direct spray onto the display.
Documentation & Warranty
- Brecknell C3236 brochure V5, 2023, legacy single-range
- Brecknell C3236 user instructions, Issue AC, Dec2022
- Manufacturer Brecknell USA 2020 product guide, pages9–10
Manufacturer limited warranty: one year for the scale; batteries and battery packs are limited to 90 days. Terms and exclusions apply. Read the Brecknell limited warranty.
