Brecknell DCSB Floor Scale System, NTEP

The Brecknell DCSB is a carbon-steel checker-plate floor scale family for pallets and freight. This storefront listing is titled as a DCSB Floor Scale System but does not print a deck size. Call before ordering so we match 36×36, 48×48, or 59×59 and 2,500 / 5,000 / 10,000 lb.
Manufacturer: Brecknell DCSB Floor Scale System Model table: Brecknell DCSB datasheet. Brecknell lists the 48×48 5,000 lb deck as DCSB4848-05 (indicator not included on that SKU).
What is in the box
This live SKU does not name a deck size or capacity. Brecknell’s DCSB Floor Scale System is sold as a pre-calibrated deck plus indicator. Confirm which code is in the carton before you pay:
DCSB3636-2.5 — 36×36 in, 2,500 lb × 0.5 lb
DCSB4848-05 — 48×48 in, 5,000 lb × 1 lb
DCSB4848-10 — 48×48 in, 10,000 lb × 2 lb
DCSB5959-05 — 59×59 in, 5,000 lb × 1 lb
DCSB5959-10 — 59×59 in, 10,000 lb × 2 lb
Brecknell’s system page pairs the deck with an SBI 240 LCD indicator. Ramps, pit frames, and extra stands are accessories — not assumed here.
Verified specs
Brand
Brecknell
Model
DCSB (family — confirm size)
Product Type
Floor scale system
Capacity × readability
Confirm: 2,500×0.5 / 5,000×1 / 10,000×2 lb
Deck sizes
36×36 / 48×48 / 59×59 in, ~3.1 in high
Deck

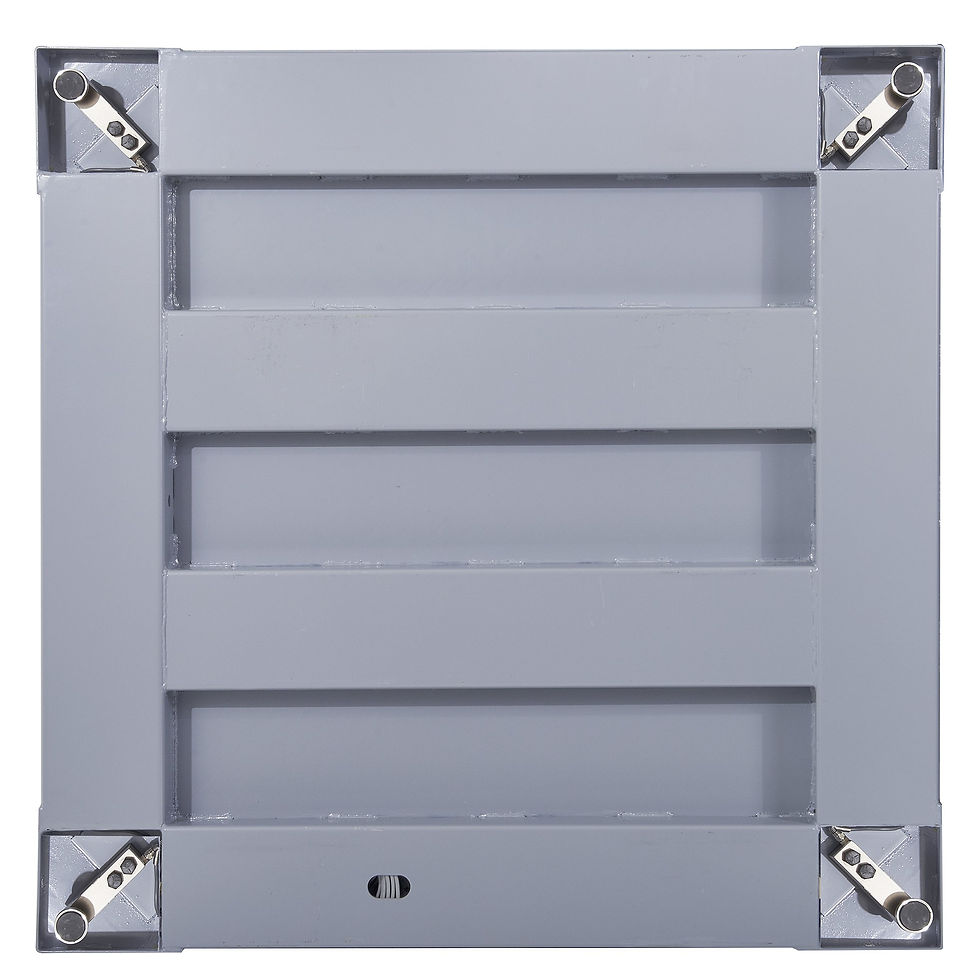

¼ in / 6 mm checker plate, powder-coat carbon steel
Load cells

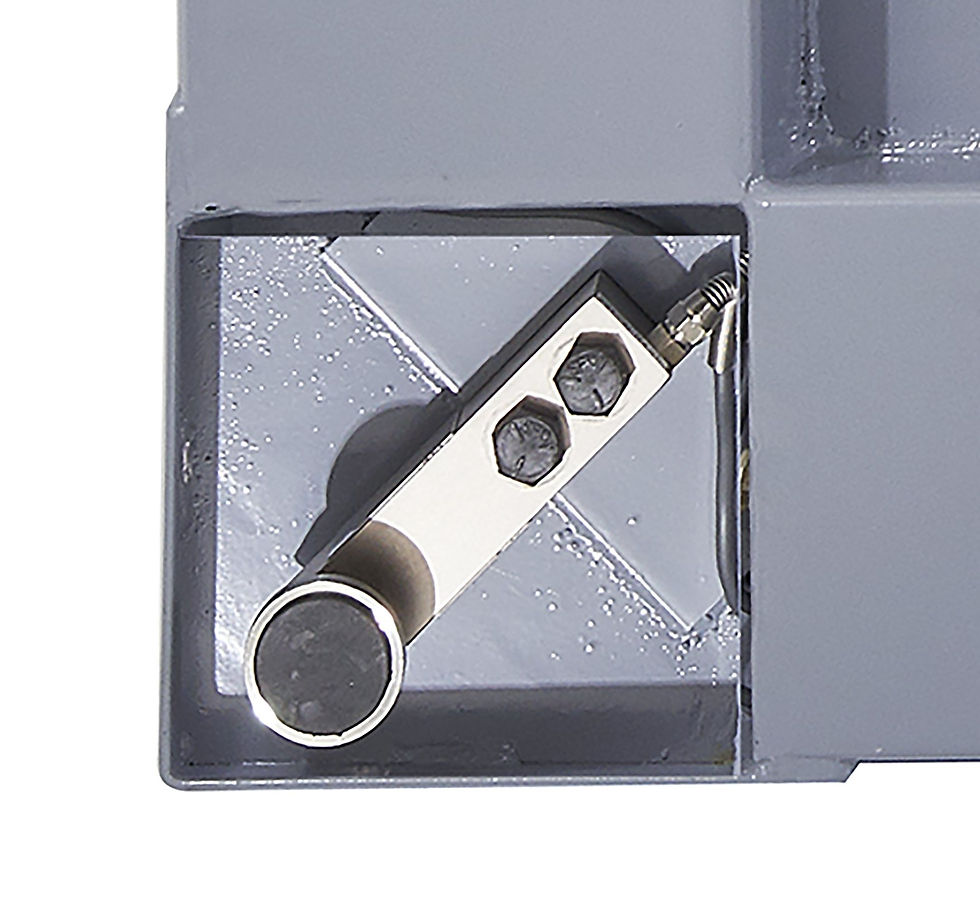

Four IP67 alloy-steel, 3 mV/V, 350 Ω (Brecknell datasheet)
Junction box
IP65, top access
Overload (deck)
150% of rated capacity
NTEP (deck family)
Yes — Class III CC 02-070
Indicator on system page
Brecknell lists SBI 240 with the system — confirm this carton
Warranty (deck)
3-year parts on DCSB deck (Brecknell DCSB datasheet)
Applications
Warehouse receiving
Pallet and freight checks
Shipping docks
Manufacturing floors
NTEP CC 02-070 is the DCSB deck family. A complete legal-for-trade system still needs a matching NTEP indicator and a place-in-service. Do not treat this page as a specific 5,000 lb or 10,000 lb quote until the size is confirmed.
