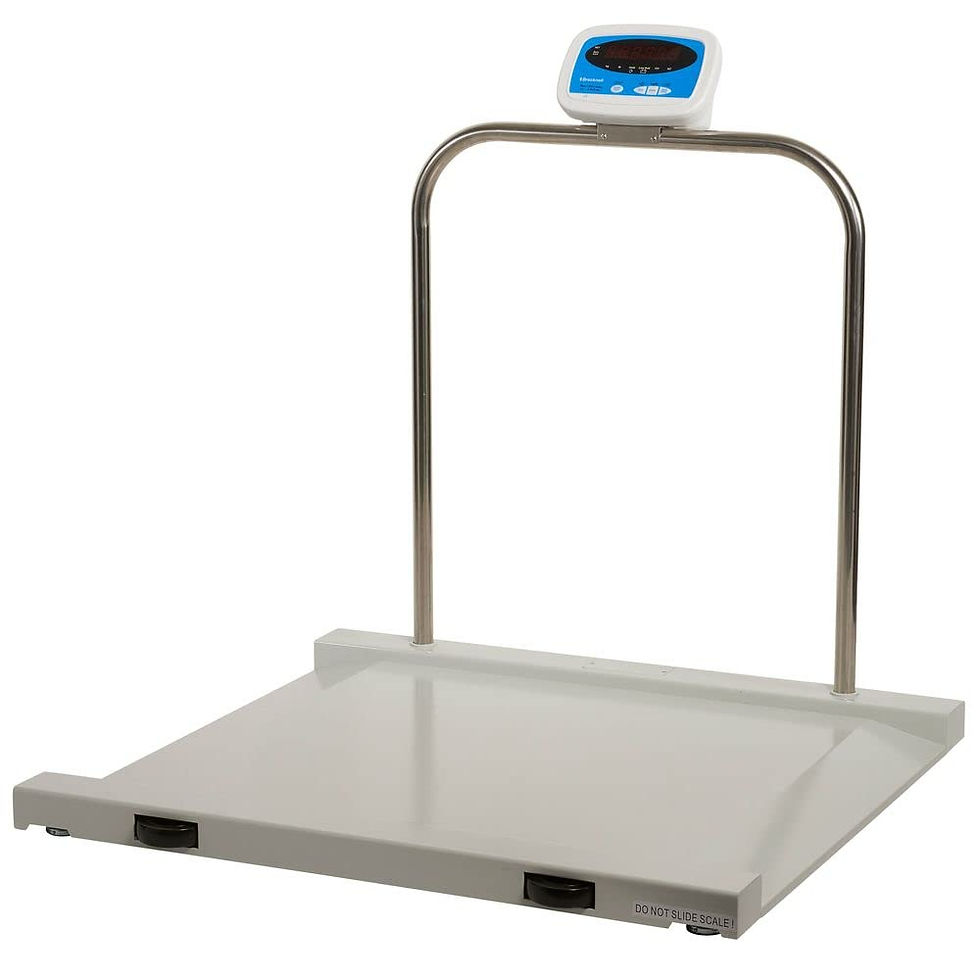

Brecknell MS1000-LCD Wheelchair / Handrail Scale, 1000 lb × 0.2 lb
SKU: E9-HXDG-WBO3
The Brecknell MS1000-LCD is a 1000 lb × 0.2 lb wheelchair and handrail medical scale: low-profile powder-coated deck, built-in 9° ramps, fixed stainless handrail, and an SBI 210 backlit LCD with BMI and hold.
Maker: Brecknell MS1000-LCD datasheet names MS1000-LCD 810036380263 as 1000 lb × 0.2 lb / 500 kg × 0.1 kg.
What is in the box
- MS1000-LCD platform with built-in ramps
- Stainless guard / handrail
- SBI 210 LCD indicator
- 9 V 600 mA US power supply
- Indicator mounting brackets
Verified specs
| Brand | Brecknell |
|---|---|
| Model | MS1000-LCD |
| Product Type | Wheelchair / handrail medical scale |
| Capacity × readability | 1000 lb × 0.2 lb / 500 kg × 0.1 kg |
| Accuracy | Within 0.1% at full load |
| Units | lb, kg |
| Functions | Weigh, tare, hold, BMI, print, unit |
| Display | SBI 210 — six 1.5 in / 38 mm digits, white-backlit LCD |
| Keys | On/Off/Zero, Tare, Unit, Print, Hold, BMI |
| Platform (flat) | 31.5 × 25.2 in / 800 × 640 mm; including ramps 31.34 × 38.26 in |
| Ramp | Built-in 9° / 9% entry and exit |
| Guard rail | 33.85 × 27.6 in / 860 × 700 mm stainless handrail |
| Load cells | Four waterproof shear-beam cells; IP65 junction box; 10 ft / 3 m cable |
| Construction | Powder-coated mild-steel deck, wheels and handles for moving |
| Interfaces | USB (VCP) and RS-232 |
| Power | 9 V 600 mA US adapter included; 6×AA optional (not included); up to 37 hours |
| Operating temp | 14°F to 104°F / −10°C to 40°C |
| Net / ship | 100 lb / 45 kg; ship 110 lb / 50 kg |
| Warranty | 3-year limited |
| Certifications | FCC, ETL power adapter, Prop 65 |
| Brecknell code | 810036380263 |
| In the carton | MS1000-LCD platform, guard/handrail, SBI 210 indicator, US power supply, indicator mounting brackets |
Applications
- Clinics and physician exam rooms
- Assisted living and nursing homes
- Wheelchair and standing patient weigh-ins
Questions before you order
Questions on compatibility, calibration, or what is in the box? All Scales USA, 21249 FM 529 Rd, Cypress, TX 77433. Call (832) 766-5410 or email pete@allscales.com. Also: (281) 656-2666 · (832) 290-3120.
Specifications
Brand Brecknell Model MS1000-LCD Product Type Wheelchair / handrail medical scale Capacity × readability 1000 lb × 0.2 lb / 500 kg × 0.1 kg Accuracy Within 0.1% at full load Units lb, kg Functions Weigh, tare, hold, BMI, print, unit Display SBI 210 — six 1.5 in / 38 mm digits, white-backlit LCD Keys On/Off/Zero, Tare, Unit, Print, Hold, BMI Platform (flat) 31.5 × 25.2 in / 800 × 640 mm; including ramps 31.34 × 38.26 in Ramp Built-in 9° / 9% entry and exit Guard rail 33.85 × 27.6 in / 860 × 700 mm stainless handrail Load cells Four waterproof shear-beam cells; IP65 junction box; 10 ft / 3 m cable Construction Powder-coated mild-steel deck, wheels and handles for moving Interfaces USB (VCP) and RS-232 Power 9 V 600 mA US adapter included; 6×AA optional (not included); up to 37 hours Operating temp 14°F to 104°F / −10°C to 40°C Net / ship 100 lb / 45 kg; ship 110 lb / 50 kg Warranty 3-year limited Certifications FCC, ETL power adapter, Prop 65 Brecknell code 810036380263 In the carton MS1000-LCD platform, guard/handrail, SBI 210 indicator, US power supply, indicator mounting brackets Applications & Industries
- Clinics and physician exam rooms
- Assisted living and nursing homes
- Wheelchair and standing patient weigh-ins
